GSVA-plot for carotis nanoString data

gene_x 0 like s 638 view s

Tags: plot, R, RNA-seq

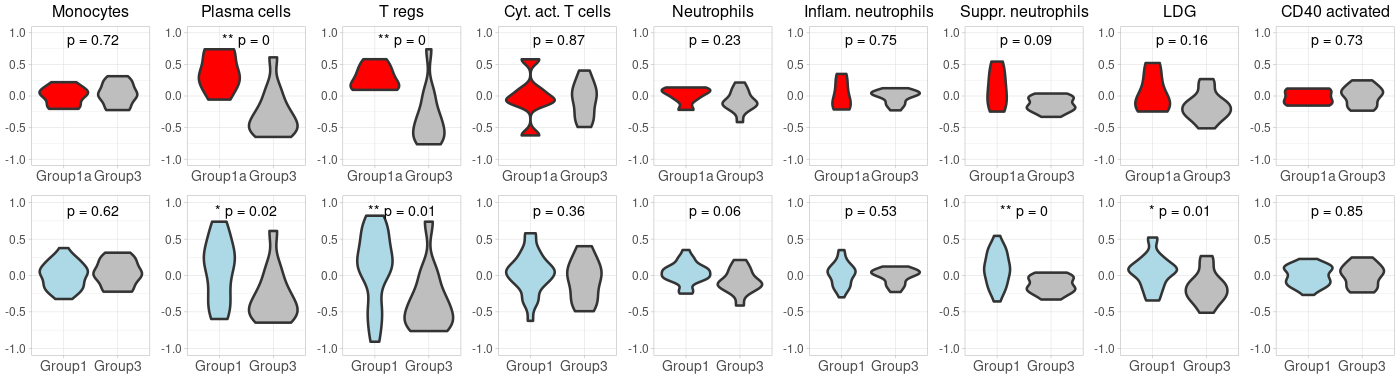

Carotis_NanoString

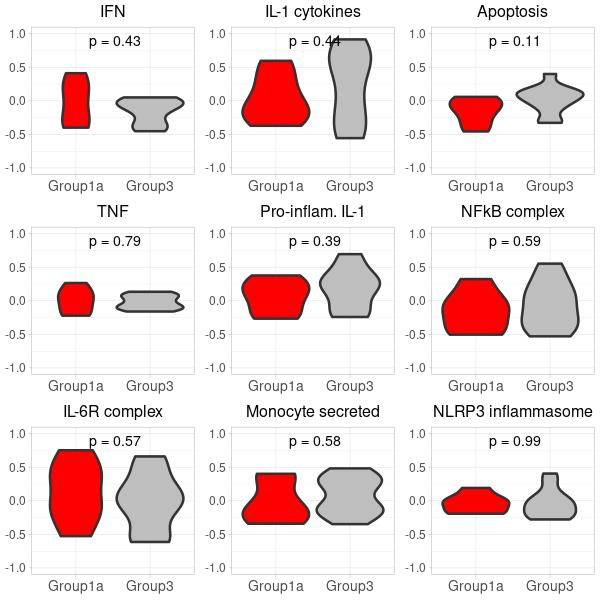

Carotis_NanoString_grid_1

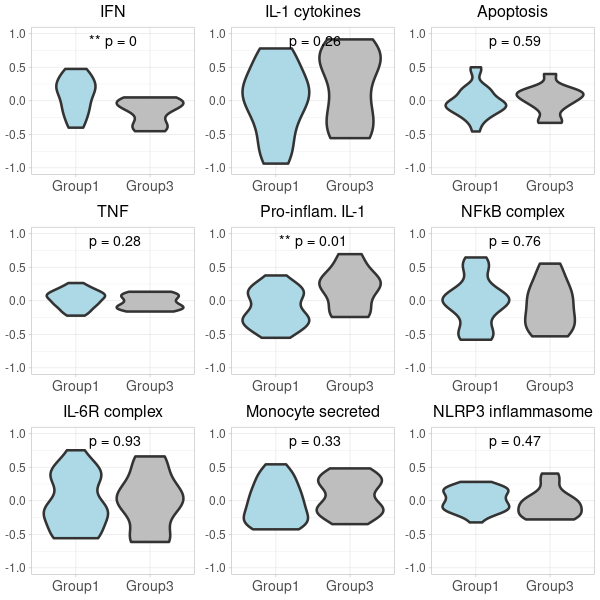

Carotis_NanoString_grid_2

  1. preparing exprs for gsva(exprs, selected_geneSets, method="gsva")

    #Input: Images/*png and (hard-coded) /mnt/Samsung_T5/Data_Susanne_spatialRNA/M666_UKE_Hamburg_box/ dccs/*.dcc, pkcs3/all.zip, and annotation/M666_All_Data_SP.xlsx

library("rmarkdown")
library("tidyverse")
library(rmarkdown)
library("GeomxTools")
library("GeoMxWorkflows")
library("NanoStringNCTools")
setwd("/home/jhuang/DATA/Data_Susanne_Carotis_spatialRNA_PUBLISHING/run_2023_2_GSVA")
render("run.Rmd", c("html_document"))

#identical(exprs(target_m666Data), assay(target_m666Data, "exprs")): contains the gene expression values that have been both normalized and log-transformed, which are often used for downstream analysis and visualization in many genomic studies.
#assay(target_m666Data, "log_q"): These are likely log2-transformed values of the quantile-normalized data. Quantile normalization ensures that the distributions of gene expression values across samples are the same, and taking the log2 of these normalized values is a common step in the analysis of high-throughput gene expression data. It's a way to make the data more suitable for downstream statistical analysis and visualization.
#assay(target_m666Data, "q_norm"): This typically represents the quantile-normalized gene expression values. Quantile normalization adjusts the expression values in each sample so that they have the same distribution. This normalization method helps remove systematic biases and makes the data more comparable across samples.
# For the following calculation, the GSVA input requires a gene expression matrix 'exprs' where rows are genes and columns are samples. This matrix must be in non-log space.
exprs <- exprs(target_m666Data)
#> dim(exprs)
#[1] 18677    45
#exprs <- exprs(filtered_or_neg_target_m666Data)

  2. preparing selected_geneSets in gsva(exprs, selected_geneSets, method="gsva")

    #Input: Signatures.xls

library(readxl)
library(gridExtra)
library(ggplot2)
library(GSVA)

# Paths to the Excel files
file_paths <- list("Signatures.xls", "Signatures_additional.xls")

# Get sheet names for each file
sheet_names_list <- lapply(file_paths, excel_sheets)

# Initialize an empty list to hold gene sets
geneSets <- list()

# Loop over each file path and its corresponding sheet names
for (i in 1:length(file_paths)) {
  file_path <- file_paths[[i]]
  sheet_names <- sheet_names_list[[i]]

  # Loop over each sheet, extract the ENSEMBL IDs, and add to the list
  for (sheet in sheet_names) {
    # Read the sheet
    data <- read_excel(file_path, sheet = sheet)

    # Process the GeneSet names (replacing spaces with underscores, for example)
    gene_set_name <- gsub(" ", "_", unique(data$GeneSet)[1])

    # Add ENSEMBL IDs to the list
    geneSets[[gene_set_name]] <- unique(as.character(data$geneSymbol))
  }
}

# Print the result to check
summary(geneSets)

#desired_geneSets <- c("Monocytes", "Plasma_cells", "T_regs", "Cyt._act._T_cells", "Neutrophils", "Inflammatory_neutrophils", "Suppressive_neutrophils", "LDG", "CD40_activated")
desired_geneSets <- c("IFN", "TNF", "IL-6R_complex", "IL-1_cytokines", "Pro-inflam._IL-1", "Monocyte_secreted", "Apoptosis", "NFkB_complex",   "NLRP3_inflammasome")
selected_geneSets <- geneSets[desired_geneSets]
# Print the selected gene sets
print(selected_geneSets)

  3. prepare violin plots for 1_vs_3

    # 1. Compute GSVA scores:
gsva_scores <- gsva(exprs, selected_geneSets, method="gsva")

# 2. Convert to data.frame for ggplot:
gsva_df <- as.data.frame(t(gsva_scores))

# 3. Add conditions to gsva_df:
identical(rownames(pData(target_m666Data)), rownames(gsva_df))
gsva_df$Condition <- pData(target_m666Data)$Grp
#identical(rownames(gsva_df_filtered), rownames(pData(target_m666Data)) )
gsva_df$SampleID <- pData(target_m666Data)$SampleID

# 4. Filter the gsva_df to retain only the desired conditions:
#group 1 vs. group 3 in the nanostring data
gsva_df_filtered <- gsva_df[gsva_df$Condition %in% c("1", "3"), ]

# 5. Define a function to plot violin plots:
# Define custom colors
custom_colors <- c("Group1" = "lightblue", "Group1a" = "red", "Group3" = "grey")

#To implement the custom colors, and make the adjustments to abbreviate "Inflammatory" and "Suppressive", as well as increase the font size for the groups on the x-axis, we can modify the plot_violin function as follows:
gsva_df_filtered$Condition <- gsub("1", "Group1", gsva_df_filtered$Condition)
gsva_df_filtered$Condition <- gsub("3", "Group3", gsva_df_filtered$Condition)
gsva_df_filtered$Condition <- factor(gsva_df_filtered$Condition, levels = c("Group1", "Group3"))
plot_violin <- function(data, gene_name) {
  # Calculate the t-test p-value for the two conditions
  condition1_data <- data[data$Condition == "Group1", gene_name]
  condition2_data <- data[data$Condition == "Group3", gene_name]
  p_value <- t.test(condition1_data, condition2_data)$p.value

  # Convert p-value to annotation
  p_annotation <- ifelse(p_value < 0.01, "**", ifelse(p_value < 0.05, "*", ""))
  rounded_p_value <- paste0("p = ", round(p_value, 2))

  plot_title <- gsub("_", " ", gene_name)
  p <- ggplot(data, aes(x=Condition, y=!!sym(gene_name), fill=Condition)) +
    geom_violin(linewidth=1.2) +
    scale_fill_manual(values = custom_colors) +
    labs(title=plot_title, y="GSVA Score") +
    ylim(-1, 1) +
    theme_light() +
    theme(
      axis.title.x = element_text(size=12),
      axis.title.y = element_text(size=12),
      axis.text.x  = element_text(size=10),
      axis.text.y  = element_text(size=10),
      plot.title   = element_text(size=12, hjust=0.5),
      legend.position = "none" # Hide legend since the colors are self-explanatory
    )

  # Add p-value annotation to the plot
  p <- p + annotate("text", x=1.5, y=0.9, label=paste0(p_annotation, " ", rounded_p_value), size=5, hjust=0.5)

  return(p)
}

# 6. Generate the list of plots in a predefined order:
#desired_order <- c("Monocytes", "Plasma_cells", "T_regs", "Cyt._act._T_cells", "Neutrophils", "Inflammatory_neutrophils", "Suppressive_neutrophils", "LDG", "CD40_activated")
desired_order <- c("IFN", "TNF", "IL-6R_complex", "IL-1_cytokines", "Pro-inflam._IL-1", "Monocyte_secreted", "Apoptosis", "NFkB_complex",   "NLRP3_inflammasome")
genes <- colnames(gsva_df_filtered)[!colnames(gsva_df_filtered) %in% "Condition"]
genes <- genes[match(desired_order, genes)]
genes <- genes[!is.na(genes)]
second_row_plots <- lapply(genes, function(gene) plot_violin(gsva_df_filtered, gene))

  4. prepare violin plots for 1a_vs_3

    # 2. Convert to data.frame for ggplot:
gsva_df <- as.data.frame(t(gsva_scores))

# 3. Add conditions to gsva_df:
identical(rownames(pData(target_m666Data)), rownames(gsva_df))
gsva_df$Condition <- pData(target_m666Data)$Group
#identical(rownames(gsva_df_filtered), rownames(pData(target_m666Data)) )
gsva_df$SampleID <- pData(target_m666Data)$SampleID

# 4. Filter the gsva_df to retain only the desired conditions:
#group 1 vs. group 3 in the nanostring data
gsva_df_filtered <- gsva_df[gsva_df$Condition %in% c("1a", "3"), ]

# 5. Define a function to plot violin plots:
# Update the condition levels in gsva_df_filtered to ensure the desired order on x-axis:
gsva_df_filtered$Condition <- gsub("1a", "Group1a", gsva_df_filtered$Condition)
gsva_df_filtered$Condition <- gsub("3", "Group3", gsva_df_filtered$Condition)
gsva_df_filtered$Condition <- factor(gsva_df_filtered$Condition, levels = c("Group1a", "Group3"))
plot_violin <- function(data, gene_name) {
  # Calculate the t-test p-value for the two conditions
  condition1_data <- data[data$Condition == "Group1a", gene_name]
  condition2_data <- data[data$Condition == "Group3", gene_name]
  p_value <- t.test(condition1_data, condition2_data)$p.value

  # Convert p-value to annotation
  p_annotation <- ifelse(p_value < 0.01, "**", ifelse(p_value < 0.05, "*", ""))
  rounded_p_value <- paste0("p = ", round(p_value, 2))

  plot_title <- gsub("_", " ", gene_name)
  p <- ggplot(data, aes(x=Condition, y=!!sym(gene_name), fill=Condition)) +
    geom_violin(linewidth=1.2) +
    scale_fill_manual(values = custom_colors) +
    labs(title=plot_title, y="GSVA Score") +
    ylim(-1, 1) +
    theme_light() +
    theme(
      axis.title.x = element_text(size=12),
      axis.title.y = element_text(size=12),
      axis.text.x  = element_text(size=10),
      axis.text.y  = element_text(size=10),
      plot.title   = element_text(size=12, hjust=0.5),
      legend.position = "none" # Hide legend since the colors are self-explanatory
    )

  # Add p-value annotation to the plot
  p <- p + annotate("text", x=1.5, y=0.9, label=paste0(p_annotation, " ", rounded_p_value), size=5, hjust=0.5)

  return(p)
}

# 6. Generate the list of plots in a predefined order:
genes <- colnames(gsva_df_filtered)[!colnames(gsva_df_filtered) %in% "Condition"]
genes <- genes[match(desired_order, genes)]
genes <- genes[!is.na(genes)]
first_row_plots <- lapply(genes, function(gene) plot_violin(gsva_df_filtered, gene))

  5. (option 1 for plot 1) merge first_row_plots and second_row_plots to a final plot using cowplot

    library(cowplot)
library(ggplot2)

# Start by extracting the 1-8 plots from each list
first_row_plots <- first_row_plots[1:9]
second_row_plots <- second_row_plots[1:9]

# Function to modify the individual plots based on position in the grid
modify_plot <- function(p, row, col) {
  #if (col > 1) {
    p <- p + theme(axis.title.y = element_blank()) # remove y-axis title if not the first plot
  #}
  #if (row == 2) {
  #  p <- p + theme(plot.title = element_blank()) # remove plot title for second row, commented because it has alreay been done below.
  #}
  p <- p + theme(
    axis.title.x = element_blank(), # remove x-axis title for all plots
    axis.title.y = element_blank(), # remove x-axis title for all plots
    axis.text = element_text(size = 14), # Increase axis text size
    axis.title = element_text(size = 16), # Increase axis title size
    plot.title = element_text(size = 16) # Increase plot title size
  )
  return(p)
}

# Abbreviate titles for specific plots
first_row_plots[[6]]$labels$title <- "Inflam. neutrophils"
first_row_plots[[7]]$labels$title <- "Suppr. neutrophils"
second_row_plots[[6]]$labels$title <- "Inflam. neutrophils"
second_row_plots[[7]]$labels$title <- "Suppr. neutrophils"

# Apply the modifications to the plots
for (i in 1:9) {
  first_row_plots[[i]] <- modify_plot(first_row_plots[[i]], 1, i)
  second_row_plots[[i]] <- modify_plot(second_row_plots[[i]], 2, i)
}

# Increase the font size of x-axis labels for each plot
for (i in 1:9) {
  first_row_plots[[i]] <- first_row_plots[[i]] + theme(axis.text.x = element_text(size = 14), axis.text.y = element_text(size = 12))
  second_row_plots[[i]] <- second_row_plots[[i]] + theme(axis.text.x = element_text(size = 14), axis.text.y = element_text(size = 12), plot.title= element_blank())
}

# Now, combine the modified plots into a single list
all_plots <- c(first_row_plots, second_row_plots)

# Generate the 2x9 grid
final_plot <- plot_grid(plotlist = all_plots, ncol = 9)

# Save the plot to a PNG file
png("Carotis_NanoString2.png", width=1400, height=380)
print(final_plot)
dev.off()

  6. (option 2 for plot 2) generating two 3x3 grid plots

    # Start by extracting the 1-9 plots from each list
first_row_plots <- first_row_plots[1:9]
second_row_plots <- second_row_plots[1:9]

# Function to modify the individual plots based on position in the grid
modify_plot <- function(p, row, col) {
  p <- p + theme(axis.title.y = element_blank()) # remove y-axis title if not the first plot
  p <- p + theme(
    axis.title.x = element_blank(), # remove x-axis title for all plots
    axis.title.y = element_blank(), # remove x-axis title for all plots
    axis.text = element_text(size = 14), # Increase axis text size
    axis.title = element_text(size = 16), # Increase axis title size
    plot.title = element_text(size = 16) # Increase plot title size
  )
  return(p)
}

# Apply the modifications to the plots
for (i in 1:9) {
  first_row_plots[[i]] <- modify_plot(first_row_plots[[i]], 1, i)
  second_row_plots[[i]] <- modify_plot(second_row_plots[[i]], 2, i)
}

# Increase the font size of x-axis labels for each plot
for (i in 1:9) {
  first_row_plots[[i]] <- first_row_plots[[i]] + theme(axis.text.x = element_text(size = 14), axis.text.y = element_text(size = 12))
  second_row_plots[[i]] <- second_row_plots[[i]] + theme(axis.text.x = element_text(size = 14), axis.text.y = element_text(size = 12))
}

# Pad first_row_plots to have 9 plots
remaining_plots <- 9 - length(first_row_plots)
if (remaining_plots > 0) {
  first_row_plots <- c(first_row_plots, rep(list(NULL), remaining_plots))
}

# Pad second_row_plots to have 9 plots
remaining_plots2 <- 9 - length(second_row_plots)
if (remaining_plots2 > 0) {
  second_row_plots <- c(second_row_plots, rep(list(NULL), remaining_plots2))
}

# Convert the first_row_plots to a matrix and draw
plots_matrix_1 <- matrix(first_row_plots, ncol=3, byrow=TRUE)
png("Carotis_NanoString_grid_1.png", width=600, height=600)
do.call("grid.arrange", c(plots_matrix_1, list(ncol=3)))
dev.off()

# Convert the second_row_plots to a matrix and draw
plots_matrix_2 <- matrix(second_row_plots, ncol=3, byrow=TRUE)
png("Carotis_NanoString_grid_2.png", width=600, height=600)
do.call("grid.arrange", c(plots_matrix_2, list(ncol=3)))
dev.off()

like unlike

点赞本文的读者

还没有人对此文章表态

本文有评论

没有评论

看文章，发评论，不要沉默

最受欢迎文章

  1. Why Do Significant Gene Lists Change After Adding Additional Conditions in Differential Gene Expression Analysis?
  2. Updating Human Gene Identifiers using Ensembl BioMart: A Step-by-Step Guide
  3. Setup conda environments
  4. pheatmap vs heatmap.2
  5. Motif Discovery in Biological Sequences: A Comparison of MEME and HOMER
  6. File format for single channel analysis of Agilent microarray data with Limma?
  7. 洛那法尼(lonafarnib)：从抗癌症到抗病毒的多功能药物
  8. RNAseq running with umi_tools
  9. Guide to Submitting Data to GEO (Gene Expression Omnibus)
  10. Calling peaks using findPeaks of HOMER

最新文章

最多评论文章

推荐相似文章

Bubble plot for 1457∆atlE vs 1457-M10 vs 1457 vs mock

GSVA-plot for carotis RNA-seq data

RNA-seq skin organoids on GRCh38+chrHsv1 (final)

MicrobiotaProcess Group2 vs Group6 (v1)

© 2023 XGenes.com Impressum
