GSVA-plot for carotis RNA-seq data

1. preparing gene expression matrix: calculate DESeq2 results

   #Input: merged_gene_counts.txt

   setwd("/home/jhuang/DATA/Data_Susanne_Carotis_RNASeq/run_2023_GSVA/")

   library("AnnotationDbi")
   library("clusterProfiler")
   library("ReactomePA")
   #BiocManager::install("org.Hs.eg.db")
   library("org.Hs.eg.db")
   library(DESeq2)
   library(gplots)

   d.raw<- read.delim2("merged_gene_counts.txt",sep="\t", header=TRUE, row.names=1)

   colnames(d.raw)<-c("gene_name", "leer_mock_2h_r2", "Ace2_mock_2h_r2", "leer_inf_24h_r1", "Ace2_inf_2h_r1", "leer_inf_24h_r2", "leer_inf_2h_r1", "leer_mock_2h_r1", "leer_inf_2h_r2", "Ace2_inf_2h_r2", "Ace2_mock_2h_r1", "Ace2_inf_24h_r2", "Ace2_inf_24h_r1")

   col_order <- c("gene_name", "leer_mock_2h_r1","leer_mock_2h_r2","leer_inf_2h_r1","leer_inf_2h_r2","leer_inf_24h_r1","leer_inf_24h_r2","Ace2_mock_2h_r1","Ace2_mock_2h_r2","Ace2_inf_2h_r1","Ace2_inf_2h_r2","Ace2_inf_24h_r1","Ace2_inf_24h_r2")

   reordered.raw <- d.raw[,col_order]
   reordered.raw$gene_name <- NULL
   #d <- d.raw[rowSums(reordered.raw>3)>2,]

   condition = as.factor(c("leer_mock_2h","leer_mock_2h","leer_inf_2h","leer_inf_2h","leer_inf_24h","leer_inf_24h","Ace2_mock_2h","Ace2_mock_2h","Ace2_inf_2h","Ace2_inf_2h","Ace2_inf_24h","Ace2_inf_24h"))
   ids = as.factor(c("leer_mock_2h_r1","leer_mock_2h_r2","leer_inf_2h_r1","leer_inf_2h_r2","leer_inf_24h_r1","leer_inf_24h_r2","Ace2_mock_2h_r1","Ace2_mock_2h_r2","Ace2_inf_2h_r1","Ace2_inf_2h_r2","Ace2_inf_24h_r1","Ace2_inf_24h_r2"))

   #cData = data.frame(row.names=colnames(reordered.raw), condition=condition,  batch=batch, ids=ids)
   #dds<-DESeqDataSetFromMatrix(countData=reordered.raw, colData=cData, design=~batch+condition)
   cData = data.frame(row.names=colnames(reordered.raw), condition=condition, ids=ids)
   dds<-DESeqDataSetFromMatrix(countData=reordered.raw, colData=cData, design=~condition)

   #----more detailed and specific with the following code!----
   dds$condition <- relevel(dds$condition, "Ace2_mock_2h")
   dds = DESeq(dds, betaPrior=FALSE)  # betaPrior default value is FALSE
   resultsNames(dds)


2. preparing selected_geneSets in gsva(exprs, selected_geneSets, method="gsva"). Note that methods are different than methods for nanoString, here are ENSEMBL listed.

   #Input: "Signatures.xls" + "Signatures_additional.xls"
   library(readxl)
   library(gridExtra)
   library(ggplot2)
   library(GSVA)
   # Paths to the Excel files
   file_paths <- list("Signatures.xls", "Signatures_additional.xls")
   # Get sheet names for each file
   sheet_names_list <- lapply(file_paths, excel_sheets)

   # Initialize an empty list to hold gene sets
   geneSets <- list()
   # Loop over each file path and its corresponding sheet names
   for (i in 1:length(file_paths)) {
     file_path <- file_paths[[i]]
     sheet_names <- sheet_names_list[[i]]
     # Loop over each sheet, extract the ENSEMBL IDs, and add to the list
     for (sheet in sheet_names) {
       # Read the sheet
       data <- read_excel(file_path, sheet = sheet)

       # Process the GeneSet names (replacing spaces with underscores, for example)
       gene_set_name <- gsub(" ", "_", unique(data$GeneSet)[1])

       # Add ENSEMBL IDs to the list
       geneSets[[gene_set_name]] <- as.character(data$ENSEMBL)
     }
   }

   # Print the result to check
   print(geneSets)
   summary(geneSets)
   #desired_geneSets <- c("Monocytes", "Plasma_cells", "T_regs", "Cyt._act._T_cells", "Neutrophils", "Inflammatory_neutrophils", "Suppressive_neutrophils", "LDG", "CD40_activated")
   desired_geneSets <- c("IFN", "TNF", "IL-6R_complex", "IL-1_cytokines", "Pro-inflam._IL-1", "Monocyte_secreted", "Apoptosis", "NFkB_complex",   "NLRP3_inflammasome")
   selected_geneSets <- geneSets[desired_geneSets]
   # Print the selected gene sets
   print(selected_geneSets)


3. prepare violin plots

   # 0. for Nanostring, the GSVA input requires a gene expression matrix 'exprs' where rows are genes and columns are samples. This matrix must be in non-log space.
   #exprs <- exprs(filtered_or_neg_target_m666Data)
   # 0. for RNAseq, the GSVA input requires a gene expression matrix where rows are genes and columns are samples. This matrix must be in non-log space.
   exprs <- counts(dds, normalized=TRUE)

   # 1. Compute GSVA scores:
   gsva_scores <- gsva(exprs, selected_geneSets, method="gsva")

   # 2. Convert to data.frame for ggplot:
   gsva_df <- as.data.frame(t(gsva_scores))

   # 3. Add conditions to gsva_df:
   gsva_df$Condition <- dds$condition

   # 4. Filter the gsva_df to retain only the desired conditions:
   #group 1 vs. group 3 in the nanostring data
   gsva_df_filtered <- gsva_df[gsva_df$Condition %in% c("Ace2_mock_2h", "Ace2_inf_24h"), ]

   # 5. Define a function to plot violin plots:
   # Update the condition levels in gsva_df_filtered to ensure the desired order on x-axis:
   gsva_df_filtered$Condition <- gsub("Ace2_mock_2h", "Group3", gsva_df_filtered$Condition)  #group3=mock
   gsva_df_filtered$Condition <- gsub("Ace2_inf_24h", "Group1a", gsva_df_filtered$Condition)  #group1a=infection
   gsva_df_filtered$Condition <- factor(gsva_df_filtered$Condition, levels = c("Group1a", "Group3"))

   plot_violin <- function(data, gene_name) {
     # Calculate the t-test p-value for the two conditions
     condition1_data <- data[data$Condition == "Group1a", gene_name]
     condition2_data <- data[data$Condition == "Group3", gene_name]
     p_value <- t.test(condition1_data, condition2_data)$p.value
     # Convert p-value to annotation
     p_annotation <- ifelse(p_value < 0.01, "**", ifelse(p_value < 0.05, "*", ""))
     rounded_p_value <- paste0("p = ", round(p_value, 2))
     plot_title <- gsub("_", " ", gene_name)
     p <- ggplot(data, aes(x=Condition, y=!!sym(gene_name), fill=Condition)) +
       geom_violin(linewidth=1.2) +
       scale_fill_manual(values = custom_colors) +
       labs(title=plot_title, y="GSVA Score") +
       ylim(-1, 1) +
       theme_light() +
       theme(
         axis.title.x = element_text(size=12),
         axis.title.y = element_text(size=12),
         axis.text.x  = element_text(size=10),
         axis.text.y  = element_text(size=10),
         plot.title   = element_text(size=12, hjust=0.5),
         legend.position = "none" # Hide legend since the colors are self-explanatory
       )
     # Add p-value annotation to the plot
     p <- p + annotate("text", x=1.5, y=0.9, label=paste0(p_annotation, " ", rounded_p_value), size=5, hjust=0.5)
     return(p)
   }
   # 6. Generate the list of plots in a predefined order:
   genes <- colnames(gsva_df_filtered)[!colnames(gsva_df_filtered) %in% "Condition"]
   genes <- genes[match(desired_order, genes)]
   genes <- genes[!is.na(genes)]
   first_row_plots <- lapply(genes, function(gene) plot_violin(gsva_df_filtered, gene))

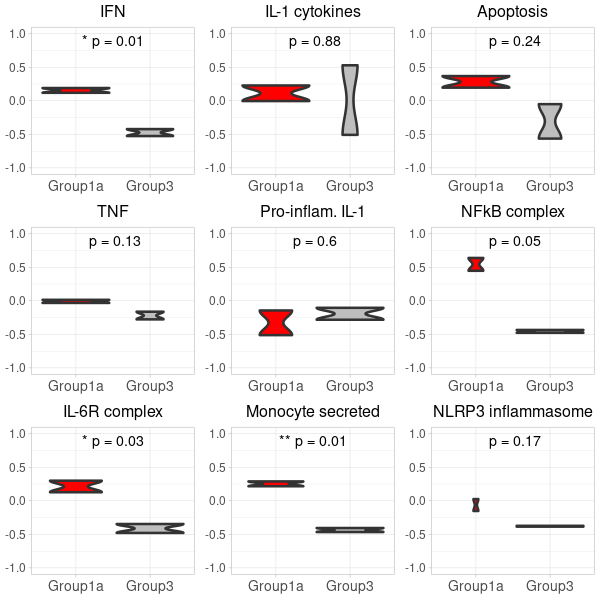

4. generating two 3x3 grid plots

   # Start by extracting the 1-9 plots from each list
   first_row_plots <- first_row_plots[1:9]

   # Function to modify the individual plots based on position in the grid
   modify_plot <- function(p, row, col) {
     p <- p + theme(axis.title.y = element_blank()) # remove y-axis title if not the first plot
     p <- p + theme(
       axis.title.x = element_blank(), # remove x-axis title for all plots
       axis.title.y = element_blank(), # remove x-axis title for all plots
       axis.text = element_text(size = 14), # Increase axis text size
       axis.title = element_text(size = 16), # Increase axis title size
       plot.title = element_text(size = 16) # Increase plot title size
     )
     return(p)
   }
   # Apply the modifications to the plots
   for (i in 1:9) {
     first_row_plots[[i]] <- modify_plot(first_row_plots[[i]], 1, i)
   }
   # Increase the font size of x-axis labels for each plot
   for (i in 1:9) {
     first_row_plots[[i]] <- first_row_plots[[i]] + theme(axis.text.x = element_text(size = 14), axis.text.y = element_text(size = 12))
   }
   # Pad first_row_plots to have 9 plots
   remaining_plots <- 9 - length(first_row_plots)
   if (remaining_plots > 0) {
     first_row_plots <- c(first_row_plots, rep(list(NULL), remaining_plots))
   }

   # Convert the first_row_plots to a matrix and draw
   plots_matrix_1 <- matrix(first_row_plots, ncol=3, byrow=TRUE)
   png("Carotis_RNA-seq_grid_1.png", width=600, height=600)
   do.call("grid.arrange", c(plots_matrix_1, list(ncol=3)))
   dev.off()
