Identify all occurrences of Phage HH1 MT880870 in S. epidermidis ST2 genomes from public and clinical isolates

gene_x 0 like s 12 view s

Tags: plot, pipeline

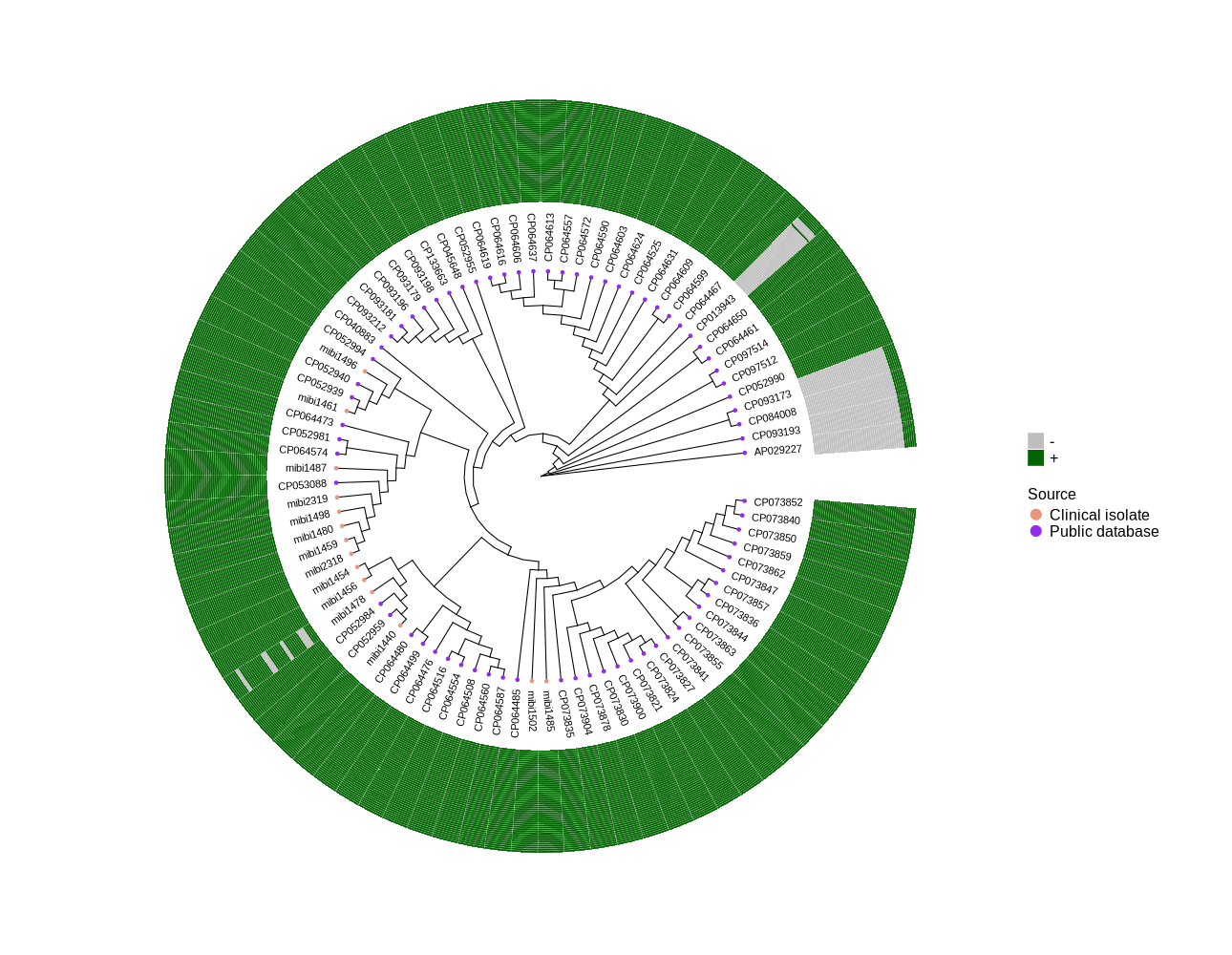

ggtree_and_gheatmap_MT880870

  1. install the bacto environment

    mamba create -n bacto -c conda-forge -c bioconda -c defaults python=3.7
mamba activate bacto
(bacto) mamba install -c conda-forge -c bioconda -c defaults trimmomatic fastqc shovill
(bacto) mamba install -c conda-forge -c bioconda -c defaults mlst snippy fasttree
(bacto) mamba install biopython
mamba install -c conda-forge perl=5.22
mamba install -c conda-forge -c bioconda roary

#------ NEED to be debugged for install roary(ERROR) --> install roary in the host env (SUCCESSFUL) ------
#ERROR (bacto) mamba install -c conda-forge -c bioconda -c defaults roary
#ERROR (bacto) cpanm Bio::Roary  #DEBUG NOT WORKING ! Installing Bio::Roary failed. See /home/jhuang/.cpanm/work/1736859390.2714327/build.log for details. Retry with --force to force install it.
#ERROR (bacto) export PERL5LIB=$CONDA_PREFIX/lib/perl5/site_perl/5.22.0/  #DEBUG SUCCESSFUL, repaired also snippy and snippy-core
sudo apt install roary

(bacto) mamba install -c conda-forge -c bioconda -c defaults raxml-ng gubbins snp-sites
(bacto) mamba install -c bioconda iqtree
#(bacto) mamba install -c conda-forge -c bioconda -c defaults perl-bioperl
#(bacto) cpanm Bio::SeqIO
#(bacto) cpanm Bio::Perl
#(bacto) mamba install -c conda-forge -c bioconda -c defaults biopython
#(bacto) mamba install -c conda-forge -c bioconda -c defaults snakemak

  2. alignment of complete genomes

    Alignment of Complete Genomes vs Alignment of Core Genes

Alignment of Complete Genomes:
    Useful when all genomes are complete and high-quality.
    Not ideal if many genomes are incomplete or fragmented, as this can introduce noise.

Alignment of Core Genes:
    Preferred when working with a mix of complete and draft genomes.
    Focuses on conserved regions, minimizing issues caused by missing or fragmented data.

How to Ensure Core Gene Alignment?

If your goal is to create a core gene alignment:

    Use a tool like Roary or Panaroo after genome annotation (e.g., with Prokka).
    Extract the core_gene_alignment.aln file for alignment, which represents the concatenated core genes shared across all genomes.

Prepare all gff-files

        bpseudomallei taylorella schromogenes bcereus orhinotracheale aactinomycetemcomitans vcholerae_2 streptomyces spyogenes paeruginosa sgallolyticus bhenselae ecoli senterica_achtman_2 brachyspira leptospira_2 streptothermophilus pdamselae campylobacter_nonjejuni_3 ypseudotuberculosis_achtman_3 abaumannii_2 staphlugdunensis mhominis_3 chlamydiales cdifficile yruckeri bsubtilis sbsec koxytoca kingella tenacibaculum pgingivalis miowae neisseria bordetella_3 cbotulinum edwardsiella ureaplasma pacnes_3 mhyorhinis gallibacterium bbacilliformis sdysgalactiae shominis mcanis borrelia smaltophilia brachyspira_2 campylobacter_nonjejuni_8 psalmonis suberis achromobacter    saureus    mhaemolytica efaecalis cronobacter rhodococcus scanis mplutonius shewanella campylobacter_nonjejuni_7 campylobacter hparasuis listeria_2 plarvae mabscessus hcinaedi csepticum    sepidermidis    mhyopneumoniae mbovis_2 wolbachia vcholerae helicobacter cperfringens bcc ranatipestifer szooepidemicus msynoviae campylobacter_nonjejuni_9 pmultocida_2 arcobacter fpsychrophilum abaumannii bwashoensis mcaseolyticus liberibacter aeromonas cmaltaromaticum vvulnificus mpneumoniae klebsiella brachyspira_5 efaecium pfluorescens hsuis ssuis dnodosus sinorhizobium msciuri spneumoniae vibrio campylobacter_nonjejuni geotrichum lsalivarius tpallidum magalactiae shaemolyticus sagalactiae ecoli_achtman_4 sthermophilus bfragilis kaerogenes blicheniformis_14 vparahaemolyticus mflocculare mgallisepticum vtapetis ecloacae ppentosaceus manserisalpingitidis spseudintermedius brachyspira_4 brachyspira_3 leptospira_3 mcatarrhalis_achtman_6 oralstrep campylobacter_nonjejuni_6 pmultocida aphagocytophilum campylobacter_nonjejuni_2 otsutsugamushi diphtheria_3 hinfluenzae pputida brucella cfreundii mycobacteria_2 mgallisepticum_2 llactis_phage xfastidiosa campylobacter_nonjejuni_4 campylobacter_nonjejuni_5 leptospira

        python ~/Scripts/run_mlst.py complete_genome_1282_ncbi.fasta sepidermidis  #73
        python ~/Scripts/run_mlst.py complete_genome_1282_ena.fasta sepidermidis   #73
        python ~/Scripts/run_mlst.py complete_genome_1282_ena_taxon_descendants.fasta sepidermidis
        grep -P "\tsepidermidis\t2\t" all.mlst > ST2.mlst  #73
        grep -v "NZ_" ST2.mlst > ST2_.mlst
        cut -d'.' -f1 ST2_.mlst | sort > ST2.ids
        cut -d'|' -f2 ST2.mlst | sort > ST2.ids
        diff ST2.ids ../ena_descendants_all_ST2_mlst/ST2.ids

        for sample in AP029227 CP013943 CP040883 CP045648 CP052939 CP052940 CP052955 CP052959 CP052981 CP052984 CP052990 CP052994 CP053088 CP064461 CP064467 CP064473 CP064476 CP064480 CP064485 CP064499 CP064508 CP064516 CP064525 CP064554 CP064557 CP064560 CP064572 CP064574 CP064587 CP064590 CP064599 CP064603 CP064606 CP064609 CP064613 CP064616 CP064619 CP064624 CP064631 CP064637 CP064650 CP073821 CP073824 CP073827 CP073830 CP073835 CP073836 CP073840 CP073841 CP073844 CP073847 CP073850 CP073852 CP073855 CP073857 CP073859 CP073862 CP073863 CP073878 CP073900 CP073904 CP084008 CP093173 CP093179 CP093181 CP093193 CP093196 CP093198 CP093212 CP097512 CP097514 CP120425 CP133663; do
            cp ../genomes_by_taxid/ncbi_all_ST2_mlst/${sample}.1.fasta ./
        done

        cd typing_complete.csv
        grep -P "\tsepidermidis\t2\t" typing_complete.csv > typing_ST2.csv

        echo -e "AP029227\nCP013943\nCP040883\nCP045648\nCP052939\nCP052940\nCP052955\nCP052959\nCP052981\nCP052984\nCP052990\nCP052994\nCP053088\nCP064461\nCP064467\nCP064473\nCP064476\nCP064480\nCP064485\nCP064499\nCP064508\nCP064516\nCP064525\nCP064554\nCP064557\nCP064560\nCP064572\nCP064574\nCP064587\nCP064590\nCP064599\nCP064603\nCP064606\nCP064609\nCP064613\nCP064616\nCP064619\nCP064624\nCP064631\nCP064637\nCP064650\nCP073821\nCP073824\nCP073827\nCP073830\nCP073835\nCP073836\nCP073840\nCP073841\nCP073844\nCP073847\nCP073850\nCP073852\nCP073855\nCP073857\nCP073859\nCP073862\nCP073863\nCP073878\nCP073900\nCP073904\nCP084008\nCP093173\nCP093179\nCP093181\nCP093193\nCP093196\nCP093198\nCP093212\nCP097512\nCP097514\nCP120425\nCP133663" > ids.txt

        cat ids.txt | while read id; do
            efetch -db nuccore -id $id -format gff3 > "${id}.gff"
            efetch -db nuccore -id $id -format fasta > "${id}.fasta"
            # Append the FASTA sequence to the GFF3 file with ##FASTA header
            echo "##FASTA" >> "${id}.gff"
            cat "${id}.fasta" >> "${id}.gff"
            rm "${id}.fasta"  # Optionally remove the separate FASTA file
        done

        for sample in mibi1440 mibi1454 mibi1456 mibi1459 mibi1461 mibi1478 mibi1480 mibi1485 mibi1487 mibi1496 mibi1498 mibi1502 mibi2318 mibi2319; do
            cp ../prokka/${sample}/${sample}.gff ./
        done

Example with Roary:

        roary -f roary_ST2 -e --mafft -p 100 roary_input_ST2/*.gff

        #roary -p 15 -f ./roary -i 95 -cd 99 -s -e -n -v roary_.fa.gb.gff CP012351.gff3 CP003084.gff3 CP023676.gff3
        -i        minimum percentage identity for blastp [95]
        -cd FLOAT percentage of isolates a gene must be in to be core [99]
        -f STR    output directory [.]
        -e        create a multiFASTA alignment of core genes using PRANK
        -n (==--mafft)       fast core gene alignment with MAFFT, use with -e

        -s        dont split paralogs
        -v        verbose output to STDOUT

The file core_gene_alignment.aln can then be used for tree construction:

        iqtree2 -s core_gene_alignment.aln -m MFP -bb 1000 -nt AUTO
        #Alignment was printed to core_gene_alignment.aln.uniqueseq.phy
        #For your convenience alignment with unique sequences printed to core_gene_alignment.aln.uniqueseq.phy
        #Create initial parsimony tree by phylogenetic likelihood library (PLL)... 0.030 seconds
        #Measuring multi-threading efficiency up to 128 CPU cores
        #Increase to 10 rounds for branch lengths

By focusing on core genes, you ensure that all genomes contribute meaningful data to the phylogenetic analysis.

The file that can be viewed as the phylogenetic tree among the generated files is:

    core_gene_alignment.aln.treefile

This file typically contains the tree in a Newick format, which is a widely used format for representing phylogenetic trees.

  3. Public Database and Clinical Isolates

    To differentiate the two groups of genomes effectively while maintaining clarity and professionalism, you can use category names that reflect their source or origin. Here are some suggestions:
Category Name Suggestions

    Source-based Names:
        Public Database and Clinical Isolates
        Public Genomes and Clinical Genomes
        Reference Genomes and Patient-derived Genomes

    Origin-based Names:
        External Sources and In-house Sequencing
        Global Genomes and Local Isolates
        Database Genomes and Clinical Strains

    Research Context Names:
        Published Genomes and Newly Sequenced Genomes
        Literature Genomes and Clinical Samples
        Archived Data and Current Study

    Abbreviated or Code-like Names:
        PUB and CLI (Public and Clinical)
        EXDB (External Database) and INHS (In-House Sequencing)
        PG (Public Genomes) and CI (Clinical Isolates)

Tips for Choosing the Best Category Names

    Clarity: Ensure that the names are intuitive and easy for others to understand.
    Neutrality: Avoid names that might imply bias or inferiority (e.g., avoid "old" vs. "new").
    Context Appropriateness: Consider your audience. For a clinical study, terms like "Clinical Isolates" may resonate more, while "Public Database" works better for bioinformatics research.

For instance:

    "Database" and "Clinical" could work well in a manuscript.
    "External" and "In-house" might be better for internal project tracking.

  4. copy contigs of own clinical isolates

    #extract all genes from the phages set as the column names, set the genome names from the public database and own isolates as row names.

for sample in mibi1440 mibi1454 mibi1456 mibi1459 mibi1461 mibi1478 mibi1480 mibi1485 mibi1487 mibi1496 mibi1498 mibi1502 mibi2318 mibi2319; do
  cp ../shovill/${sample}/contigs.fa ${sample}.fasta
done

  5. makeblastdb

    #MT880870_on_mibi1435.blastn: 2366
#MT880870_on_mibi1436.blastn: 3198
#MT880870_on_mibi1437.blastn: 3198

# -lenth(MT880870)=34053
rename 's/\.1\.fasta$/.fasta/' *.1.fasta
for sample in mibi1440 mibi1454 mibi1456 mibi1459 mibi1461 mibi1478 mibi1480 mibi1485 mibi1487 mibi1496 mibi1498 mibi1502 mibi2318 mibi2319 AP029227 CP013943 CP040883 CP045648 CP052939 CP052940 CP052955 CP052959 CP052981 CP052984 CP052990 CP052994 CP053088 CP064461 CP064467 CP064473 CP064476 CP064480 CP064485 CP064499 CP064508 CP064516 CP064525 CP064554 CP064557 CP064560 CP064572 CP064574 CP064587 CP064590 CP064599 CP064603 CP064606 CP064609 CP064613 CP064616 CP064619 CP064624 CP064631 CP064637 CP064650 CP073821 CP073824 CP073827 CP073830 CP073835 CP073836 CP073840 CP073841 CP073844 CP073847 CP073850 CP073852 CP073855 CP073857 CP073859 CP073862 CP073863 CP073878 CP073900 CP073904 CP084008 CP093173 CP093179 CP093181 CP093193 CP093196 CP093198 CP093212 CP097512 CP097514 CP120425 CP133663; do
    makeblastdb -in ${sample}.fasta -dbtype nucl
done

  6. prepare typing_ST2_until_QPB07622.csv

    samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07572.1_1" > QPB07572.fasta
mkdir QPB07572
for sample in mibi1440 mibi1454 mibi1456 mibi1459 mibi1461 mibi1478 mibi1480 mibi1485 mibi1487 mibi1496 mibi1498 mibi1502 mibi2318 mibi2319 AP029227 CP013943 CP040883 CP045648 CP052939 CP052940 CP052955 CP052959 CP052981 CP052984 CP052990 CP052994 CP053088 CP064461 CP064467 CP064473 CP064476 CP064480 CP064485 CP064499 CP064508 CP064516 CP064525 CP064554 CP064557 CP064560 CP064572 CP064574 CP064587 CP064590 CP064599 CP064603 CP064606 CP064609 CP064613 CP064616 CP064619 CP064624 CP064631 CP064637 CP064650 CP073821 CP073824 CP073827 CP073830 CP073835 CP073836 CP073840 CP073841 CP073844 CP073847 CP073850 CP073852 CP073855 CP073857 CP073859 CP073862 CP073863 CP073878 CP073900 CP073904 CP084008 CP093173 CP093179 CP093181 CP093193 CP093196 CP093198 CP093212 CP097512 CP097514 CP120425 CP133663; do
    blastn -db ${sample}.fasta -query QPB07572.fasta -evalue 1e-50 -num_threads 15 -outfmt 6 -strand both -max_target_seqs 1 > ./QPB07572/${sample}.blastn
done
python ~/Scripts/process_directory.py /mnt/md1/DATA_md1/Data_Luise_Sepi_STKN/presence_absence_ST2/QPB07572 /mnt/md1/DATA_md1/Data_Luise_Sepi_STKN/presence_absence_ST2/typing_ST2.csv

samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07573.1_2" > QPB07573.fasta
mkdir QPB07573
for sample in mibi1440 mibi1454 mibi1456 mibi1459 mibi1461 mibi1478 mibi1480 mibi1485 mibi1487 mibi1496 mibi1498 mibi1502 mibi2318 mibi2319 AP029227 CP013943 CP040883 CP045648 CP052939 CP052940 CP052955 CP052959 CP052981 CP052984 CP052990 CP052994 CP053088 CP064461 CP064467 CP064473 CP064476 CP064480 CP064485 CP064499 CP064508 CP064516 CP064525 CP064554 CP064557 CP064560 CP064572 CP064574 CP064587 CP064590 CP064599 CP064603 CP064606 CP064609 CP064613 CP064616 CP064619 CP064624 CP064631 CP064637 CP064650 CP073821 CP073824 CP073827 CP073830 CP073835 CP073836 CP073840 CP073841 CP073844 CP073847 CP073850 CP073852 CP073855 CP073857 CP073859 CP073862 CP073863 CP073878 CP073900 CP073904 CP084008 CP093173 CP093179 CP093181 CP093193 CP093196 CP093198 CP093212 CP097512 CP097514 CP120425 CP133663; do
    blastn -db ${sample}.fasta -query QPB07573.fasta -evalue 1e-50 -num_threads 15 -outfmt 6 -strand both -max_target_seqs 1 > ./QPB07573/${sample}.blastn
done
python ~/Scripts/process_directory.py /mnt/md1/DATA_md1/Data_Luise_Sepi_STKN/presence_absence_ST2/QPB07573 /mnt/md1/DATA_md1/Data_Luise_Sepi_STKN/presence_absence_ST2/updated_typing_ST2.csv

samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07574.1_3" > QPB07574.fasta
mkdir QPB07574
for sample in mibi1440 mibi1454 mibi1456 mibi1459 mibi1461 mibi1478 mibi1480 mibi1485 mibi1487 mibi1496 mibi1498 mibi1502 mibi2318 mibi2319 AP029227 CP013943 CP040883 CP045648 CP052939 CP052940 CP052955 CP052959 CP052981 CP052984 CP052990 CP052994 CP053088 CP064461 CP064467 CP064473 CP064476 CP064480 CP064485 CP064499 CP064508 CP064516 CP064525 CP064554 CP064557 CP064560 CP064572 CP064574 CP064587 CP064590 CP064599 CP064603 CP064606 CP064609 CP064613 CP064616 CP064619 CP064624 CP064631 CP064637 CP064650 CP073821 CP073824 CP073827 CP073830 CP073835 CP073836 CP073840 CP073841 CP073844 CP073847 CP073850 CP073852 CP073855 CP073857 CP073859 CP073862 CP073863 CP073878 CP073900 CP073904 CP084008 CP093173 CP093179 CP093181 CP093193 CP093196 CP093198 CP093212 CP097512 CP097514 CP120425 CP133663; do
    blastn -db ${sample}.fasta -query QPB07574.fasta -evalue 1e-50 -num_threads 15 -outfmt 6 -strand both -max_target_seqs 1 > ./QPB07574/${sample}.blastn
done
python ~/Scripts/process_directory.py /mnt/md1/DATA_md1/Data_Luise_Sepi_STKN/presence_absence_ST2/QPB07574 /mnt/md1/DATA_md1/Data_Luise_Sepi_STKN/presence_absence_ST2/updated_updated_typing_ST2.csv

samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07575.1_4" > QPB07575.fasta
mkdir QPB07575
for sample in mibi1440 mibi1454 mibi1456 mibi1459 mibi1461 mibi1478 mibi1480 mibi1485 mibi1487 mibi1496 mibi1498 mibi1502 mibi2318 mibi2319 AP029227 CP013943 CP040883 CP045648 CP052939 CP052940 CP052955 CP052959 CP052981 CP052984 CP052990 CP052994 CP053088 CP064461 CP064467 CP064473 CP064476 CP064480 CP064485 CP064499 CP064508 CP064516 CP064525 CP064554 CP064557 CP064560 CP064572 CP064574 CP064587 CP064590 CP064599 CP064603 CP064606 CP064609 CP064613 CP064616 CP064619 CP064624 CP064631 CP064637 CP064650 CP073821 CP073824 CP073827 CP073830 CP073835 CP073836 CP073840 CP073841 CP073844 CP073847 CP073850 CP073852 CP073855 CP073857 CP073859 CP073862 CP073863 CP073878 CP073900 CP073904 CP084008 CP093173 CP093179 CP093181 CP093193 CP093196 CP093198 CP093212 CP097512 CP097514 CP120425 CP133663; do
    blastn -db ${sample}.fasta -query QPB07575.fasta -evalue 1e-50 -num_threads 15 -outfmt 6 -strand both -max_target_seqs 1 > ./QPB07575/${sample}.blastn
done
python ~/Scripts/process_directory.py /mnt/md1/DATA_md1/Data_Luise_Sepi_STKN/presence_absence_ST2/QPB07575 /mnt/md1/DATA_md1/Data_Luise_Sepi_STKN/presence_absence_ST2/updated_updated_updated_typing_ST2.csv

samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07576.1_5" > QPB07576.fasta
mkdir QPB07576
for sample in mibi1440 mibi1454 mibi1456 mibi1459 mibi1461 mibi1478 mibi1480 mibi1485 mibi1487 mibi1496 mibi1498 mibi1502 mibi2318 mibi2319 AP029227 CP013943 CP040883 CP045648 CP052939 CP052940 CP052955 CP052959 CP052981 CP052984 CP052990 CP052994 CP053088 CP064461 CP064467 CP064473 CP064476 CP064480 CP064485 CP064499 CP064508 CP064516 CP064525 CP064554 CP064557 CP064560 CP064572 CP064574 CP064587 CP064590 CP064599 CP064603 CP064606 CP064609 CP064613 CP064616 CP064619 CP064624 CP064631 CP064637 CP064650 CP073821 CP073824 CP073827 CP073830 CP073835 CP073836 CP073840 CP073841 CP073844 CP073847 CP073850 CP073852 CP073855 CP073857 CP073859 CP073862 CP073863 CP073878 CP073900 CP073904 CP084008 CP093173 CP093179 CP093181 CP093193 CP093196 CP093198 CP093212 CP097512 CP097514 CP120425 CP133663; do
    blastn -db ${sample}.fasta -query QPB07576.fasta -evalue 1e-50 -num_threads 15 -outfmt 6 -strand both -max_target_seqs 1 > ./QPB07576/${sample}.blastn
done
python ~/Scripts/process_directory.py /mnt/md1/DATA_md1/Data_Luise_Sepi_STKN/presence_absence_ST2/QPB07576 /mnt/md1/DATA_md1/Data_Luise_Sepi_STKN/presence_absence_ST2/updated_updated_updated_updated_typing_ST2.csv

samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07577.1_6" > QPB07577.fasta
mkdir QPB07577
for sample in mibi1440 mibi1454 mibi1456 mibi1459 mibi1461 mibi1478 mibi1480 mibi1485 mibi1487 mibi1496 mibi1498 mibi1502 mibi2318 mibi2319 AP029227 CP013943 CP040883 CP045648 CP052939 CP052940 CP052955 CP052959 CP052981 CP052984 CP052990 CP052994 CP053088 CP064461 CP064467 CP064473 CP064476 CP064480 CP064485 CP064499 CP064508 CP064516 CP064525 CP064554 CP064557 CP064560 CP064572 CP064574 CP064587 CP064590 CP064599 CP064603 CP064606 CP064609 CP064613 CP064616 CP064619 CP064624 CP064631 CP064637 CP064650 CP073821 CP073824 CP073827 CP073830 CP073835 CP073836 CP073840 CP073841 CP073844 CP073847 CP073850 CP073852 CP073855 CP073857 CP073859 CP073862 CP073863 CP073878 CP073900 CP073904 CP084008 CP093173 CP093179 CP093181 CP093193 CP093196 CP093198 CP093212 CP097512 CP097514 CP120425 CP133663; do
    blastn -db ${sample}.fasta -query QPB07577.fasta -evalue 1e-50 -num_threads 15 -outfmt 6 -strand both -max_target_seqs 1 > ./QPB07577/${sample}.blastn
done
python ~/Scripts/process_directory.py /mnt/md1/DATA_md1/Data_Luise_Sepi_STKN/presence_absence_ST2/QPB07577 /mnt/md1/DATA_md1/Data_Luise_Sepi_STKN/presence_absence_ST2/updated_updated_updated_updated_updated_typing_ST2.csv

samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07578.1_7" > QPB07578.fasta
mkdir QPB07578
for sample in mibi1440 mibi1454 mibi1456 mibi1459 mibi1461 mibi1478 mibi1480 mibi1485 mibi1487 mibi1496 mibi1498 mibi1502 mibi2318 mibi2319 AP029227 CP013943 CP040883 CP045648 CP052939 CP052940 CP052955 CP052959 CP052981 CP052984 CP052990 CP052994 CP053088 CP064461 CP064467 CP064473 CP064476 CP064480 CP064485 CP064499 CP064508 CP064516 CP064525 CP064554 CP064557 CP064560 CP064572 CP064574 CP064587 CP064590 CP064599 CP064603 CP064606 CP064609 CP064613 CP064616 CP064619 CP064624 CP064631 CP064637 CP064650 CP073821 CP073824 CP073827 CP073830 CP073835 CP073836 CP073840 CP073841 CP073844 CP073847 CP073850 CP073852 CP073855 CP073857 CP073859 CP073862 CP073863 CP073878 CP073900 CP073904 CP084008 CP093173 CP093179 CP093181 CP093193 CP093196 CP093198 CP093212 CP097512 CP097514 CP120425 CP133663; do
    blastn -db ${sample}.fasta -query QPB07578.fasta -evalue 1e-50 -num_threads 15 -outfmt 6 -strand both -max_target_seqs 1 > ./QPB07578/${sample}.blastn
done
python ~/Scripts/process_directory.py /mnt/md1/DATA_md1/Data_Luise_Sepi_STKN/presence_absence_ST2/QPB07578 /mnt/md1/DATA_md1/Data_Luise_Sepi_STKN/presence_absence_ST2/updated_updated_updated_updated_updated_updated_typing_ST2.csv

samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07579.1_8" > QPB07579.fasta
mkdir QPB07579
for sample in mibi1440 mibi1454 mibi1456 mibi1459 mibi1461 mibi1478 mibi1480 mibi1485 mibi1487 mibi1496 mibi1498 mibi1502 mibi2318 mibi2319 AP029227 CP013943 CP040883 CP045648 CP052939 CP052940 CP052955 CP052959 CP052981 CP052984 CP052990 CP052994 CP053088 CP064461 CP064467 CP064473 CP064476 CP064480 CP064485 CP064499 CP064508 CP064516 CP064525 CP064554 CP064557 CP064560 CP064572 CP064574 CP064587 CP064590 CP064599 CP064603 CP064606 CP064609 CP064613 CP064616 CP064619 CP064624 CP064631 CP064637 CP064650 CP073821 CP073824 CP073827 CP073830 CP073835 CP073836 CP073840 CP073841 CP073844 CP073847 CP073850 CP073852 CP073855 CP073857 CP073859 CP073862 CP073863 CP073878 CP073900 CP073904 CP084008 CP093173 CP093179 CP093181 CP093193 CP093196 CP093198 CP093212 CP097512 CP097514 CP120425 CP133663; do
    blastn -db ${sample}.fasta -query QPB07579.fasta -evalue 1e-50 -num_threads 15 -outfmt 6 -strand both -max_target_seqs 1 > ./QPB07579/${sample}.blastn
done
python ~/Scripts/process_directory.py /mnt/md1/DATA_md1/Data_Luise_Sepi_STKN/presence_absence_ST2/QPB07579 /mnt/md1/DATA_md1/Data_Luise_Sepi_STKN/presence_absence_ST2/updated_updated_updated_updated_updated_updated_updated_typing_ST2.csv

grep ">" MT880870.fasta > temp
cut -d' ' -f1 temp > temp1

#    region="lcl|MT880870.1_cds_${id}.1_$((i - 78))"  # Adjust index calculation for region
#    echo "samtools faidx MT880870.fasta \"$region\" > ${id}.fasta"
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07580.1_9" > QPB07580.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07581.1_10" > QPB07581.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07582.1_11" > QPB07582.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07583.1_12" > QPB07583.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07584.1_13" > QPB07584.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07585.1_14" > QPB07585.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07586.1_15" > QPB07586.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07587.1_16" > QPB07587.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07588.1_17" > QPB07588.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07589.1_18" > QPB07589.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07590.1_19" > QPB07590.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07591.1_20" > QPB07591.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07592.1_21" > QPB07592.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07593.1_22" > QPB07593.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07594.1_23" > QPB07594.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07595.1_24" > QPB07595.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07596.1_25" > QPB07596.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07597.1_26" > QPB07597.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07598.1_27" > QPB07598.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07599.1_28" > QPB07599.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07600.1_29" > QPB07600.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07601.1_30" > QPB07601.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07602.1_31" > QPB07602.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07603.1_32" > QPB07603.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07604.1_33" > QPB07604.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07605.1_34" > QPB07605.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07606.1_35" > QPB07606.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07607.1_36" > QPB07607.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07608.1_37" > QPB07608.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07609.1_38" > QPB07609.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07610.1_39" > QPB07610.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07611.1_40" > QPB07611.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07612.1_41" > QPB07612.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07613.1_42" > QPB07613.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07614.1_43" > QPB07614.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07615.1_44" > QPB07615.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07616.1_45" > QPB07616.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07617.1_46" > QPB07617.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07618.1_47" > QPB07618.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07619.1_48" > QPB07619.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07620.1_49" > QPB07620.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07621.1_50" > QPB07621.fasta
samtools faidx MT880870.fasta "lcl|MT880870.1_cds_QPB07622.1_51" > QPB07622.fasta

for i in {580..580}; do
    id=$(printf "QPB07%03d" "$i")
    echo "mkdir ${id}"
    echo "for sample in mibi1440 mibi1454 mibi1456 mibi1459 mibi1461 mibi1478 mibi1480 mibi1485 mibi1487 mibi1496 mibi1498 mibi1502 mibi2318 mibi2319 AP029227 CP013943 CP040883 CP045648 CP052939 CP052940 CP052955 CP052959 CP052981 CP052984 CP052990 CP052994 CP053088 CP064461 CP064467 CP064473 CP064476 CP064480 CP064485 CP064499 CP064508 CP064516 CP064525 CP064554 CP064557 CP064560 CP064572 CP064574 CP064587 CP064590 CP064599 CP064603 CP064606 CP064609 CP064613 CP064616 CP064619 CP064624 CP064631 CP064637 CP064650 CP073821 CP073824 CP073827 CP073830 CP073835 CP073836 CP073840 CP073841 CP073844 CP073847 CP073850 CP073852 CP073855 CP073857 CP073859 CP073862 CP073863 CP073878 CP073900 CP073904 CP084008 CP093173 CP093179 CP093181 CP093193 CP093196 CP093198 CP093212 CP097512 CP097514 CP120425 CP133663; do"
        echo "blastn -db \${sample}.fasta -query ${id}.fasta -evalue 1e-50 -num_threads 15 -outfmt 6 -strand both -max_target_seqs 1 > ./${id}/\${sample}.blastn"
    echo "done"
done
python ~/Scripts/process_directory.py /mnt/md1/DATA_md1/Data_Luise_Sepi_STKN/presence_absence_ST2/QPB07580 /mnt/md1/DATA_md1/Data_Luise_Sepi_STKN/presence_absence_ST2/updated_updated_updated_updated_updated_updated_updated_updated_typing_ST2.csv /mnt/md1/DATA_md1/Data_Luise_Sepi_STKN/presence_absence_ST2/typing_ST2_until_QPB07580.csv

for i in {581..622}; do
    id_1=$(printf "QPB07%03d" "$((i-1))")
    id=$(printf "QPB07%03d" "$i")
    echo "mkdir ${id}"
    echo "for sample in mibi1440 mibi1454 mibi1456 mibi1459 mibi1461 mibi1478 mibi1480 mibi1485 mibi1487 mibi1496 mibi1498 mibi1502 mibi2318 mibi2319 AP029227 CP013943 CP040883 CP045648 CP052939 CP052940 CP052955 CP052959 CP052981 CP052984 CP052990 CP052994 CP053088 CP064461 CP064467 CP064473 CP064476 CP064480 CP064485 CP064499 CP064508 CP064516 CP064525 CP064554 CP064557 CP064560 CP064572 CP064574 CP064587 CP064590 CP064599 CP064603 CP064606 CP064609 CP064613 CP064616 CP064619 CP064624 CP064631 CP064637 CP064650 CP073821 CP073824 CP073827 CP073830 CP073835 CP073836 CP073840 CP073841 CP073844 CP073847 CP073850 CP073852 CP073855 CP073857 CP073859 CP073862 CP073863 CP073878 CP073900 CP073904 CP084008 CP093173 CP093179 CP093181 CP093193 CP093196 CP093198 CP093212 CP097512 CP097514 CP120425 CP133663; do"
        echo "blastn -db \${sample}.fasta -query ${id}.fasta -evalue 1e-50 -num_threads 15 -outfmt 6 -strand both -max_target_seqs 1 > ./${id}/\${sample}.blastn"
    echo "done"
    echo "python ~/Scripts/process_directory.py /mnt/md1/DATA_md1/Data_Luise_Sepi_STKN/presence_absence_ST2/${id} /mnt/md1/DATA_md1/Data_Luise_Sepi_STKN/presence_absence_ST2/typing_ST2_until_${id_1}.csv /mnt/md1/DATA_md1/Data_Luise_Sepi_STKN/presence_absence_ST2/typing_ST2_until_${id}.csv"
done

cp typing_ST2_until_QPB07622.csv ../plotTreeHeatmap_ST2/typing_ST2.csv

  7. plot tree heatmap

    library(ggtree)
library(ggplot2)
library(dplyr)
setwd("/home/jhuang/DATA/Data_Luise_Sepi_STKN/plotTreeHeatmap_ST2/")
# -- edit tree --
#https://icytree.org/
#0.000780
info <- read.csv("typing_ST2.csv", sep="\t")
info$name <- info$Isolate
tree <- read.tree("core_gene_alignment.aln.treefile")
cols <- c("Public database"='purple2', "Clinical isolate"='darksalmon')  #purple2  skyblue2

heatmapData2 <- info %>% select(Isolate, QPB07572, QPB07573, QPB07574, QPB07575, QPB07576, QPB07577, QPB07578, QPB07579, QPB07580, QPB07581, QPB07582, QPB07583, QPB07584, QPB07585, QPB07586, QPB07587, QPB07588, QPB07589, QPB07590, QPB07591, QPB07592, QPB07593, QPB07594, QPB07595, QPB07596, QPB07597, QPB07598, QPB07599, QPB07600, QPB07601, QPB07602, QPB07603, QPB07604, QPB07605, QPB07606, QPB07607, QPB07608, QPB07609, QPB07610, QPB07611, QPB07612, QPB07613, QPB07614, QPB07615, QPB07616, QPB07617, QPB07618, QPB07619, QPB07620, QPB07621, QPB07622)  #ST,
rn <- heatmapData2$Isolate
heatmapData2$Isolate <- NULL
heatmapData2 <- as.data.frame(sapply(heatmapData2, as.character))
rownames(heatmapData2) <- rn

heatmap.colours <- c("darkgreen","grey")
names(heatmap.colours) <- c("+","-")

#mydat$Regulation <- factor(mydat$Regulation, levels=c("up","down"))
#circular
p <- ggtree(tree, layout='circular', branch.length='none') %<+% info + geom_tippoint(aes(color=Source)) + scale_color_manual(values=cols) + geom_tiplab2(aes(label=name), offset=1)

png("ggtree.png", width=1260, height=1260)
#svg("ggtree.svg", width=1260, height=1260)
p
dev.off()

#png("ggtree_and_gheatmap.png", width=1290, height=1000)
#svg("ggtree_and_gheatmap.svg", width=17, height=15)
#gheatmap(p, heatmapData2, width=0.1, colnames_position="top", colnames_angle=90, colnames_offset_y = 0.1, hjust=0.5, font.size=4, offset = 5) + scale_fill_manual(values=heatmap.colours) +  theme(legend.text = element_text(size = 14)) + theme(legend.title = element_text(size = 14)) + guides(fill=guide_legend(title=""), color = guide_legend(override.aes = list(size = 5)))

png("ggtree_and_gheatmap.png", width=1290, height=1000)
gheatmap(p, heatmapData2, width=0.5, colnames_position="top", colnames_angle=90, colnames_offset_y = 0.1, hjust=0.5, font.size=0, offset = 8) + scale_fill_manual(values=heatmap.colours) +  theme(legend.text = element_text(size = 16)) + theme(legend.title = element_text(size = 16)) + guides(fill=guide_legend(title=""), color = guide_legend(override.aes = list(size = 5)))
dev.off()

like unlike

点赞本文的读者

还没有人对此文章表态

本文有评论

没有评论

看文章，发评论，不要沉默

最受欢迎文章

  1. Why Do Significant Gene Lists Change After Adding Additional Conditions in Differential Gene Expression Analysis?
  2. Updating Human Gene Identifiers using Ensembl BioMart: A Step-by-Step Guide
  3. Setup conda environments
  4. Motif Discovery in Biological Sequences: A Comparison of MEME and HOMER
  5. File format for single channel analysis of Agilent microarray data with Limma?
  6. pheatmap vs heatmap.2
  7. 洛那法尼(lonafarnib)：从抗癌症到抗病毒的多功能药物
  8. RNAseq running with umi_tools
  9. Calling peaks using findPeaks of HOMER
  10. Guide to Submitting Data to GEO (Gene Expression Omnibus)

最新文章

最多评论文章

推荐相似文章

MicrobiotaProcess Group2 vs Group6 (v1)

RNA-seq skin organoids on GRCh38+chrHsv1 (final)

From epidome to treeHeatmap

Deciphering S. aureus with metatranscriptomics (Marc's project)

© 2023 XGenes.com Impressum
