Functional Clustering of Genes Based on COG Terms Using Eggnog and Blast2GO

1. Generate protein fasta

   python3 getProteinSequences_1.py > Proximity_labelling.fasta
   python3 getProteinSequences_2.py > ALFA_pulldown.fasta
   python3 getProteinSequences_3.py > schnittmenge.fasta


2. Using eggnog_env to generate the intial annotations

   mamba activate eggnog_env
   emapper.py -i Proximity_labelling.fasta -o eggnog_out_Proximity_labelling --cpu 60  #--resume
   emapper.py -i ALFA_pulldown.fasta -o eggnog_out_ALFA_pulldown --cpu 60
   emapper.py -i schnittmenge.fasta -o eggnog_out_schnittmenge --cpu 60


3. Using BLAST2GO to generate GO terms and EC terms

4. Using R to merge the two files blast2go_annot.annot2_ and eggnog_out.emapper.annotations.txt

   #mamba activate r_env
   # PREPARING go_terms and ec_terms: annot_* file: cut -f1-2 -d$'\t' blast2go_annot.annot2 > blast2go_annot.annot2_
   # PREPARING cp eggnog_out.emapper.annotations eggnog_out.emapper.annotations.txt. Note that the first last 3 lines starting with "#" should be removed; '#query' to query

   # Load required libraries
   library(openxlsx)  # For Excel file handling
   library(dplyr)     # For data manipulation
   library(clusterProfiler)  # For KEGG and GO enrichment analysis
   #library(org.Hs.eg.db)  # Replace with appropriate organism database
   #BiocManager::install("GO.db")
   #BiocManager::install("AnnotationDbi")
   library(GO.db)
   library(AnnotationDbi)

   # Step 1: Load the blast2go annotation file with a check for missing columns
   annot_df <- read.table("/home/jhuang/b2gWorkspace_schnittmenge/blast2go_annot.annot2_",
                       header = FALSE, sep = "\t", stringsAsFactors = FALSE, fill = TRUE)
   # If the structure is inconsistent, we can make sure there are exactly 3 columns:
   colnames(annot_df) <- c("GeneID", "Term")
   # Step 2: Filter and aggregate GO and EC terms as before
   go_terms <- annot_df %>%
   filter(grepl("^GO:", Term)) %>%
   group_by(GeneID) %>%
   summarize(GOs = paste(Term, collapse = ","), .groups = "drop")
   ec_terms <- annot_df %>%
   filter(grepl("^EC:", Term)) %>%
   group_by(GeneID) %>%
   summarize(EC = paste(Term, collapse = ","), .groups = "drop")

   eggnog_data <- read.delim("~/DATA/Data_Michelle_ProteinClustering/eggnog_out_schnittmenge.emapper.annotations.txt", header = TRUE, sep = "\t")

   # Perform the left joins and rename columns
   eggnog_data_updated <- eggnog_data %>%
   left_join(go_terms, by = "GeneID") %>%
   left_join(ec_terms, by = "GeneID")
   #%>% select(-EC.x, -GOs.x)
   #%>% rename(EC = EC.y, GOs = GOs.y)

   # Create a new workbook
   wb <- createWorkbook()
   # Add the complete dataset as the first sheet (with annotations)
   addWorksheet(wb, "Complete_Data")
   writeData(wb, "Complete_Data", eggnog_data_updated)
   # Save the workbook to a file
   saveWorkbook(wb, "Gene_with_Annotations_schnittmenge.xlsx", overwrite = TRUE)

   #Manually DELETE GOs.x and EC.x and rename GOs.y to GOs, EC.y to EC.


5. Draw group bar plot for relative occurrence

   import matplotlib.pyplot as plt
   import pandas as pd
   import numpy as np

   # COG annotations for the two gene sets
   proximity_labelling = [
       'D', 'S', 'K', 'S', 'T', 'S', 'S', 'F', 'E', 'J', 'G', 'C', 'C', 'S', 'I', 'L', 'I', 'S', 'S', 'G', 'O', 'H', 'IQ', 'L', 'C', 'H', 'C', 'NU', 'O', 'C',
       'M', 'S', 'IQ', 'G', 'S', 'M', 'M', '-', 'M', 'S', 'J', 'S', 'IQ', 'K', 'E', 'J', 'K', 'E', 'J', 'S', 'K', 'E', 'S', 'J', 'S', 'V', 'C', 'I', 'K', 'IQ',
       'M', 'S', 'T', 'P', 'C', 'J', 'S', 'E', 'C', 'K', 'H', 'S', 'H', 'H'
   ]

   alfa_pulldown = [
       'K', 'S', 'P', 'K', 'C', 'K', 'I', 'O', '-', 'F', 'C', 'P', 'HQ', '-', 'L', 'L', 'S', 'G', 'IQ', 'S'
   ]

   # Define all possible COG categories (including the combinations)
   all_cog_categories_ = ['J','A', 'K', 'L', 'B', 'D', 'Y', 'V', 'T', 'M', 'N', 'Z', 'W', 'U', 'O', 'C','G', 'E', 'F', 'H', 'I', 'P', 'Q', 'R', 'S']
   all_cog_categories = all_cog_categories_[::-1]

   # Define functional groups for COG categories
   functional_groups = {
       "INFORMATION STORAGE AND PROCESSING": ['J', 'A', 'K', 'L', 'B'],
       "CELLULAR PROCESSES AND SIGNALING": ['D', 'Y', 'V', 'T', 'M', 'N', 'Z', 'W', 'U', 'O'],
       "METABOLISM": ['C', 'G', 'E', 'F', 'H', 'I', 'P', 'Q'],
       "POORLY CHARACTERIZED": ['R', 'S']
   }

   # Function to count occurrences of each COG category in a gene set, handling combinations
   def count_cog_categories(gene_set):
       counts = {cog: gene_set.count(cog) for cog in all_cog_categories}

       # Treat combinations (e.g., IQ, HQ, NU) as belonging to both respective categories
       combination_categories = {
           'IQ': ['I', 'Q'],
           'HQ': ['H', 'Q'],
           'NU': ['N', 'U']
       }

       for comb, categories in combination_categories.items():
           comb_count = gene_set.count(comb)
           for category in categories:
               counts[category] += comb_count
           counts[comb] = 0  # Remove the combination itself as it is distributed

       return counts

   # Count COG categories for each gene set
   proximity_counts = count_cog_categories(proximity_labelling)
   alfa_counts = count_cog_categories(alfa_pulldown)

   # Calculate relative occurrence (percentage) of each COG category for both gene sets
   total_proximity = len(proximity_labelling)
   total_alfa = len(alfa_pulldown)

   # Calculate percentages for each COG category in both gene sets
   proximity_percentage = {cog: count / total_proximity * 100 for cog, count in proximity_counts.items()}
   alfa_percentage = {cog: count / total_alfa * 100 for cog, count in alfa_counts.items()}

   # Create a DataFrame to store the percentages for both gene sets
   df_percentage = pd.DataFrame({
       'Proximity Labelling (%)': [proximity_percentage.get(cog, 0) for cog in all_cog_categories],
       'ALFA Pulldown (%)': [alfa_percentage.get(cog, 0) for cog in all_cog_categories]
   }, index=all_cog_categories)

   ## Reverse the order of the COG categories
   #df_percentage = df_percentage[::-1]
   # Round the values to 1 decimal place
   df_percentage = df_percentage.round(1)

   # Save the relative occurrence data in a text file
   file_path = "COG_relative_occurrence.txt"
   df_percentage.to_csv(file_path, sep='\t', header=True, index=True)

   # Save the relative occurrence data in an Excel file
   file_path = "COG_relative_occurrence.xlsx"
   df_percentage.to_excel(file_path, header=True, index=True)

   # Display file path where the data was saved
   print(f"Relative occurrence data has been saved to {file_path}")

   # --------------------

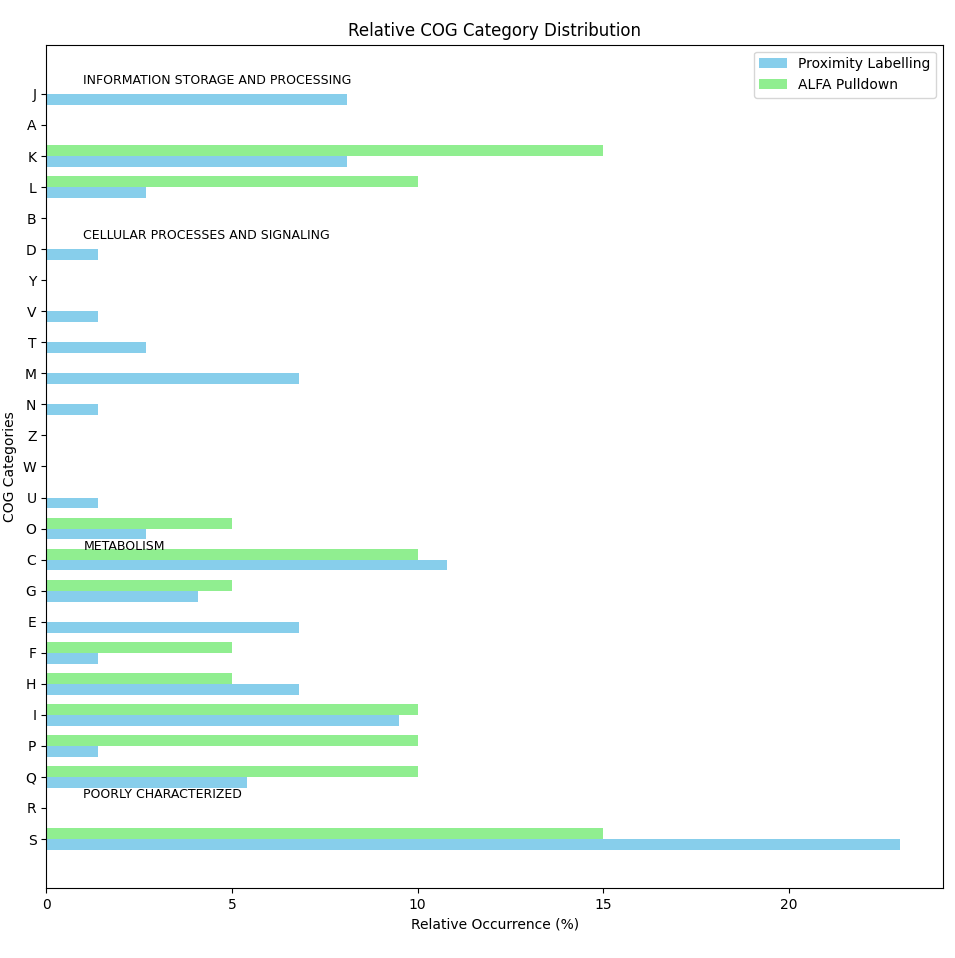

   # Horizontal Grouped Bar Plot
   # --------------------

   # Plot a horizontal grouped bar chart
   fig, ax = plt.subplots(figsize=(12, 8))

   # Create the positions for each group of bars
   bar_height = 0.35
   index = np.arange(len(df_percentage))

   # Plot bars for both gene sets
   bar1 = ax.barh(index, df_percentage['Proximity Labelling (%)'], bar_height, label='Proximity Labelling', color='skyblue')
   bar2 = ax.barh(index + bar_height, df_percentage['ALFA Pulldown (%)'], bar_height, label='ALFA Pulldown', color='lightgreen')

   # Customize the plot
   ax.set_ylabel('COG Categories')
   ax.set_xlabel('Relative Occurrence (%)')
   ax.set_title('Relative COG Category Distribution')
   ax.set_yticks(index + bar_height / 2)
   ax.set_yticklabels(all_cog_categories)

   # Annotate functional groups
   #, fontweight='bold'
   for group, categories in functional_groups.items():
       # Find indices of the categories in this group
       group_indices = [all_cog_categories.index(cog) for cog in categories]
       # Add a label for the functional group
       ax.annotate(group, xy=(1, group_indices[0] + 0.5), xycoords='data', fontsize=9, color='black')

   # Add legend
   ax.legend()

   # Show the plot
   plt.tight_layout()
   plt.show()
